DCI-5
High induction circular diffuser, configuration variable summer⁄winter for heights up to 4,5m. Standard anodized aluminum finish or white RAL 9016. Screw mounting with mounting bridge or plenum. The nominal size range from 6" to 18" with a flow range from 150m³⁄h to 2.600m³⁄h. Available integrated diffuser plate, steel plate for modular ceiling.
Diffuser suitable for ceiling and seen through easily installed by removing the nucleus.

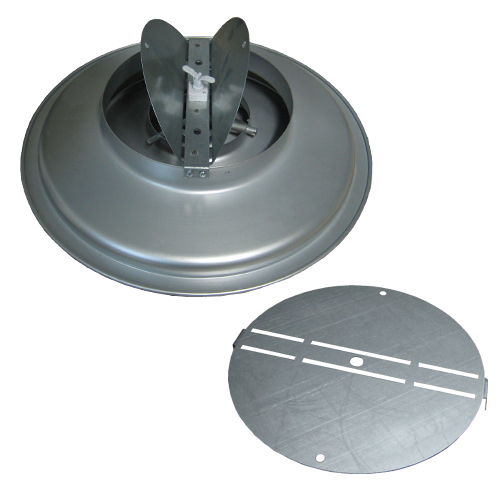

Butterfly Damper: in galvanized steel.

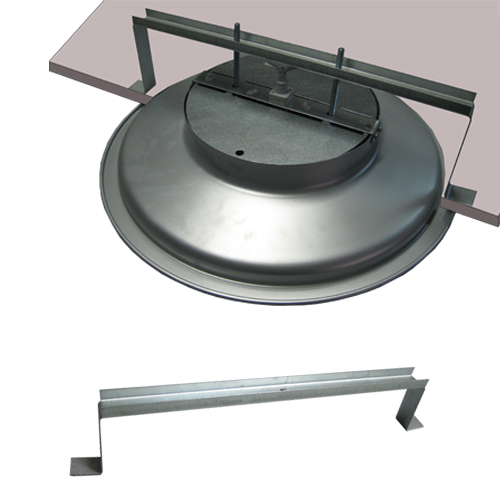

Mounting Traverse: in galvanized steel.

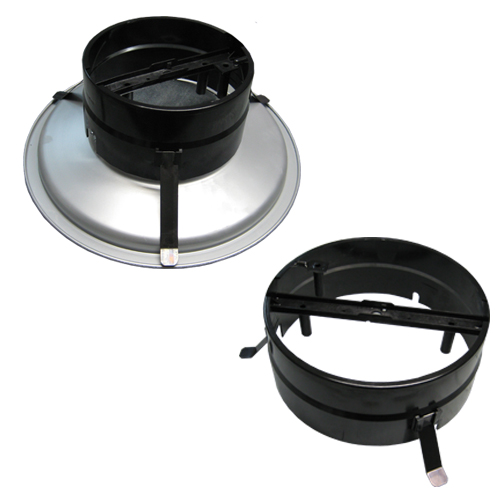

Connecting Piece: for flexible duct in polycarbonate (up to 12") or galvanized steel (15" et 18").(

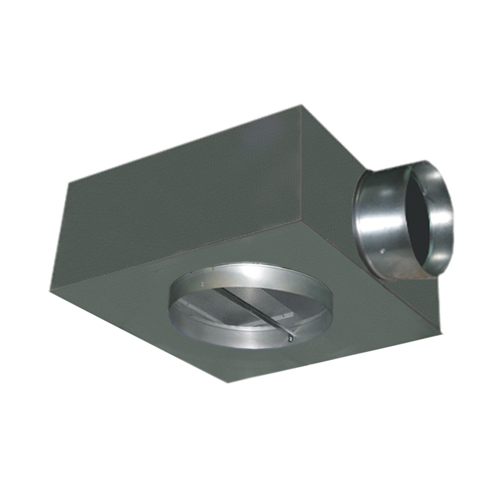

Plenum of Assembly: in galvanized steel, made in any size upon request, with circular mouth (horizontal or vertical) and optionally with insulation.
