Double deflection supply grille

Grilles of adjustable vanes, double line of blades, 1st in horizontal or vertical deflection, standard anodized aluminum finish or white RAL 9016, with three types of fixation: screws, bolts or clips. The nominal sizes ranging from 100mm to 1.500mm in length and 75mm to 600mm in height, with a flow range from 100m³⁄h to 10.000m³⁄h

Download:
More information:

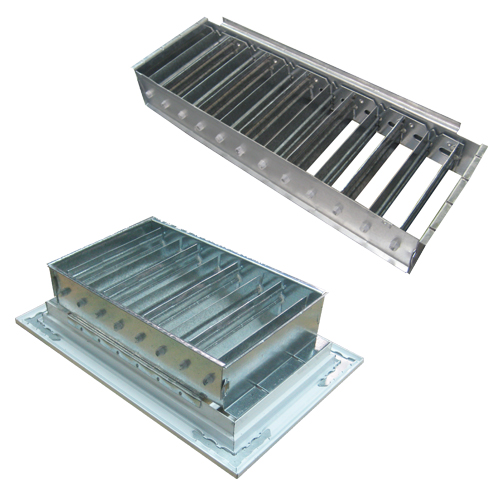

Opposited Blades Damper: in galvanized steel, operated by slider, mounted with screws on grilles and optionally removable by setting clips.

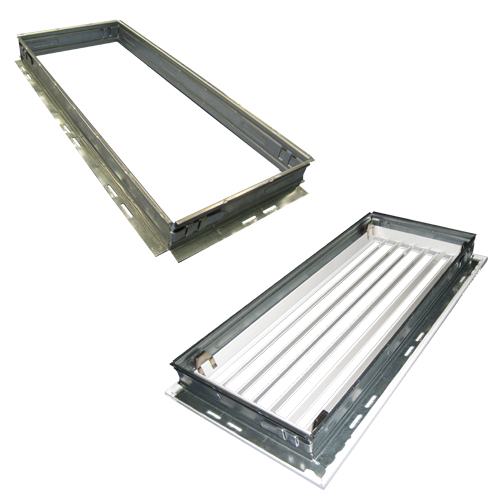

Mounting Frame: in galvanized steel, adaptable to any type of fixation and served in single bars kit (4) to assemble on site.

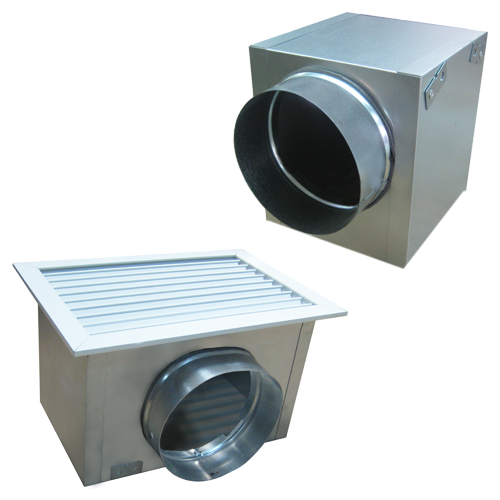

Plenum of Assembly: in galvanized steel, made in any size upon request, with circular mouth (horizontal or vertical) and optionally with insulation.
