Circular Diffuser With Fixed Cones

Circular diffuser with fixed cones, standard anodized aluminum finish or white RAL 9016. Central screw fixing bridge assembly or plenum. The nominal size range from 6" to 14" with a flow range from 100m³⁄h to 900m³⁄h. Available integrated diffuser plate, steel plate for modular ceiling.

Download:
More information:
Application:

Diffusers suitable for ceiling and seen through.

Accessories Description:

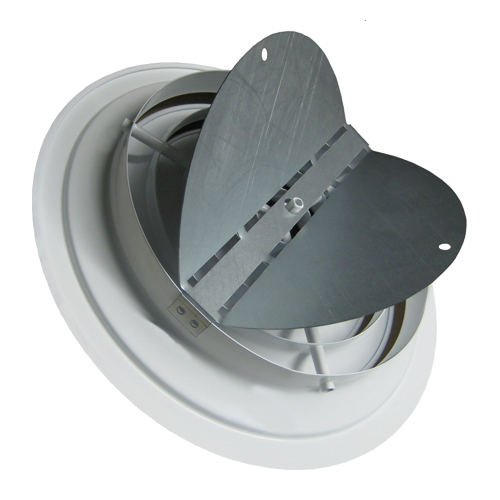

Butterfly Damper: in galvanized steel.

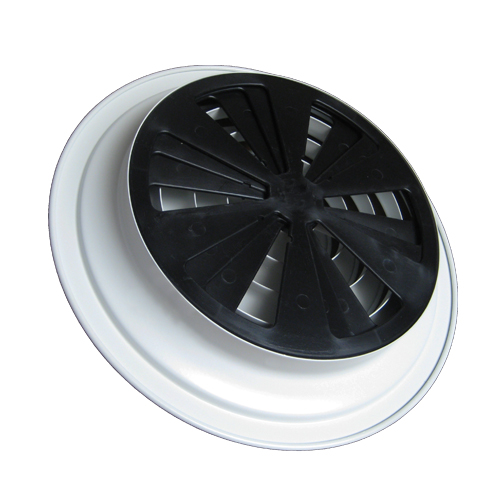

Sliding Disc Damper black pvc sliding disc operated by turning the central cone.

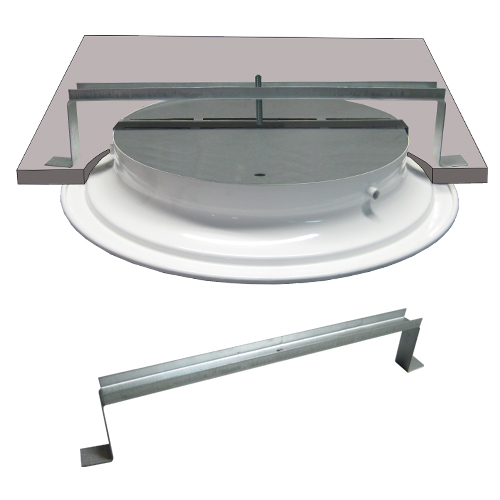

Mounting Traverse: in galvanized steel.

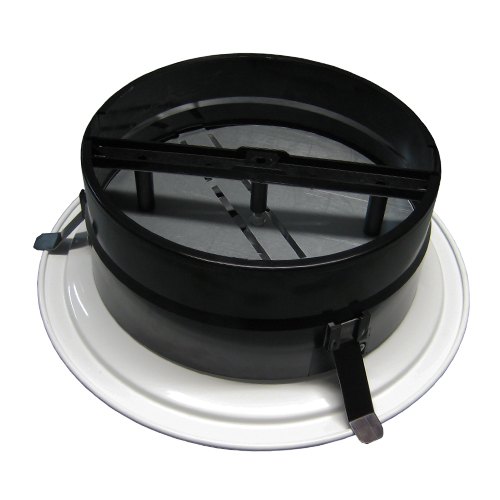

Connecting Piece: for flexible duct in polycarbonate (up to 12") or galvanized steel (14").

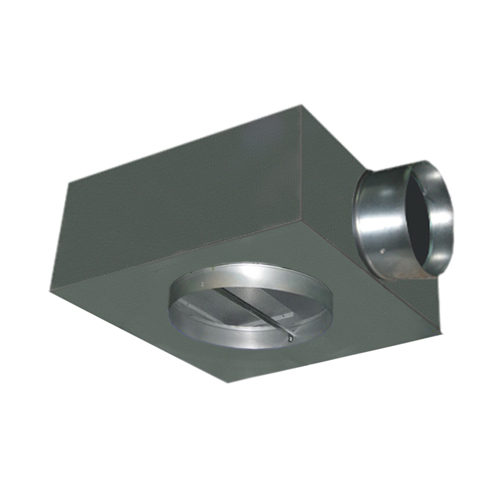

Plenum of Assembly: in galvanized steel, made in any size upon request, with circular mouth (horizontal or vertical) and optionally with insulation.
