Linear grilles with frame for supply and return.

Grilles fixed blades, standard anodized aluminum finish or white RAL 9016, with three types of fixation: screw, bolt or clip. Usable as continuous grille with straight or 15° discharge. Two frame widths 25mm and 6.5 mm, optionally second deflection. The nominal sizes ranging from 250mm to 2.000mm in length and 75mm to 300mm in height, with a flow range from 150m³⁄h to 6.000m³⁄h.

Download:
More information:

Application:

Grilles suitable for ceiling or wall mounting.

Accessories Description:

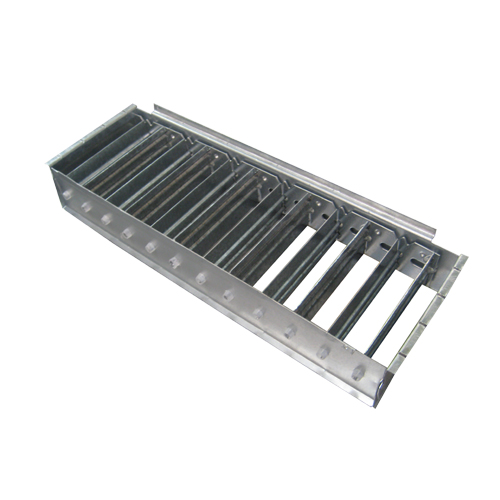

Opposited Blades Damper: in galvanized steel, operated by slider, mounted with screws on grilles and optionally removable by setting clips.

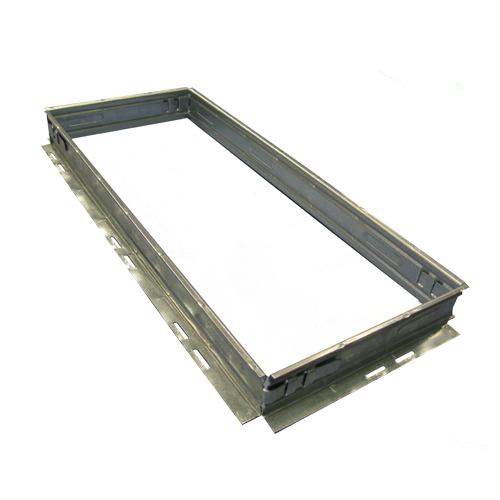

Mounting Frame: in galvanized steel, adaptable to any type of fixation and served in single bars kit (4) to assemble on site.

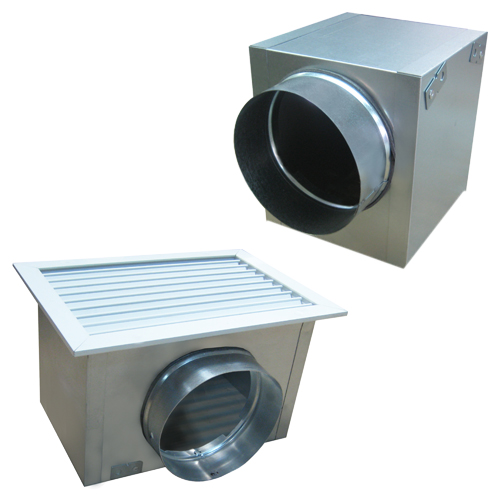

Plenum of Assembly: in galvanized steel, made in any size upon request, with circular mouth (horizontal or vertical) and optionally with insulation.
