Orientable rollers linear diffuser.

Linear diffuser of orientable rollers of black polycarbonate of 150 mm, with horizontal or vertical discharge independently in each one of them. The effect "Coanda" is kept with 30% only of the nominal flow being an ideal solution for variable volume. Finished standard in anodized aluminium or white Ral 9016. Made in any length (from 2 m in installments). Width from 1 to 4 way standard. Available to form part of the miter angle of 90°. With a flow range from 60m³⁄h to 500m³⁄h per meter. Lug locking system to hang with threaded rod, with mounting bridge or plenum.

Download:
More information:

Application:

Diffusers suitable for ceiling.

Description Accessoires:

End Pieces: to the ends.

Mounting Traverse: in galvanized steel.

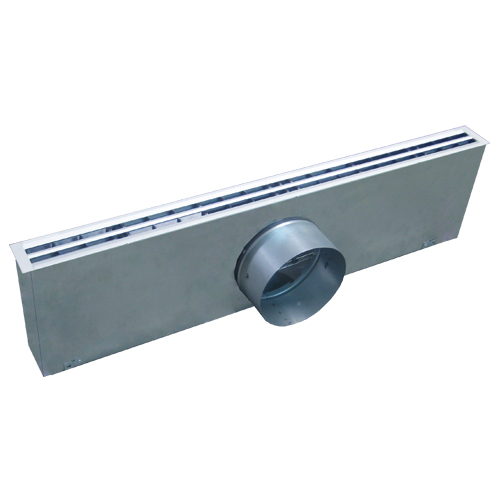

Independent Plenum: in galvanized steel, made in any size, with horizontal circular mouth, optionally isolated and/or filter. Latch fixing of glass by reducing the assembly time.

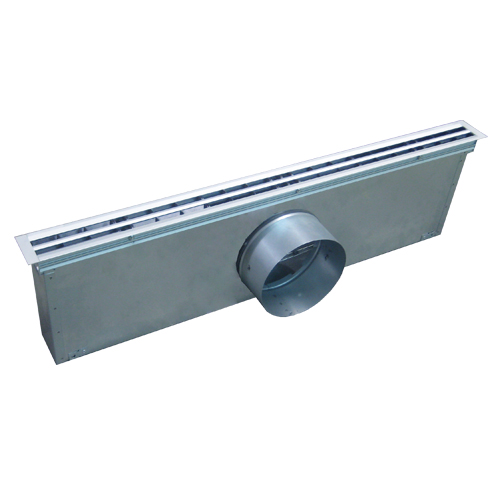

Plenum of Assembly: in galvanized steel, made in any size, with horizontal circular mouth with or without regulation damper, optionally isolated and/or filter.
